5700RPM 1TB Hard Drive Internal 3.5" Low Power Consumption With Wide Temperature Range

Product Categories
Shenzhen Raypodo Information Technology Company Ltd
Contact Now

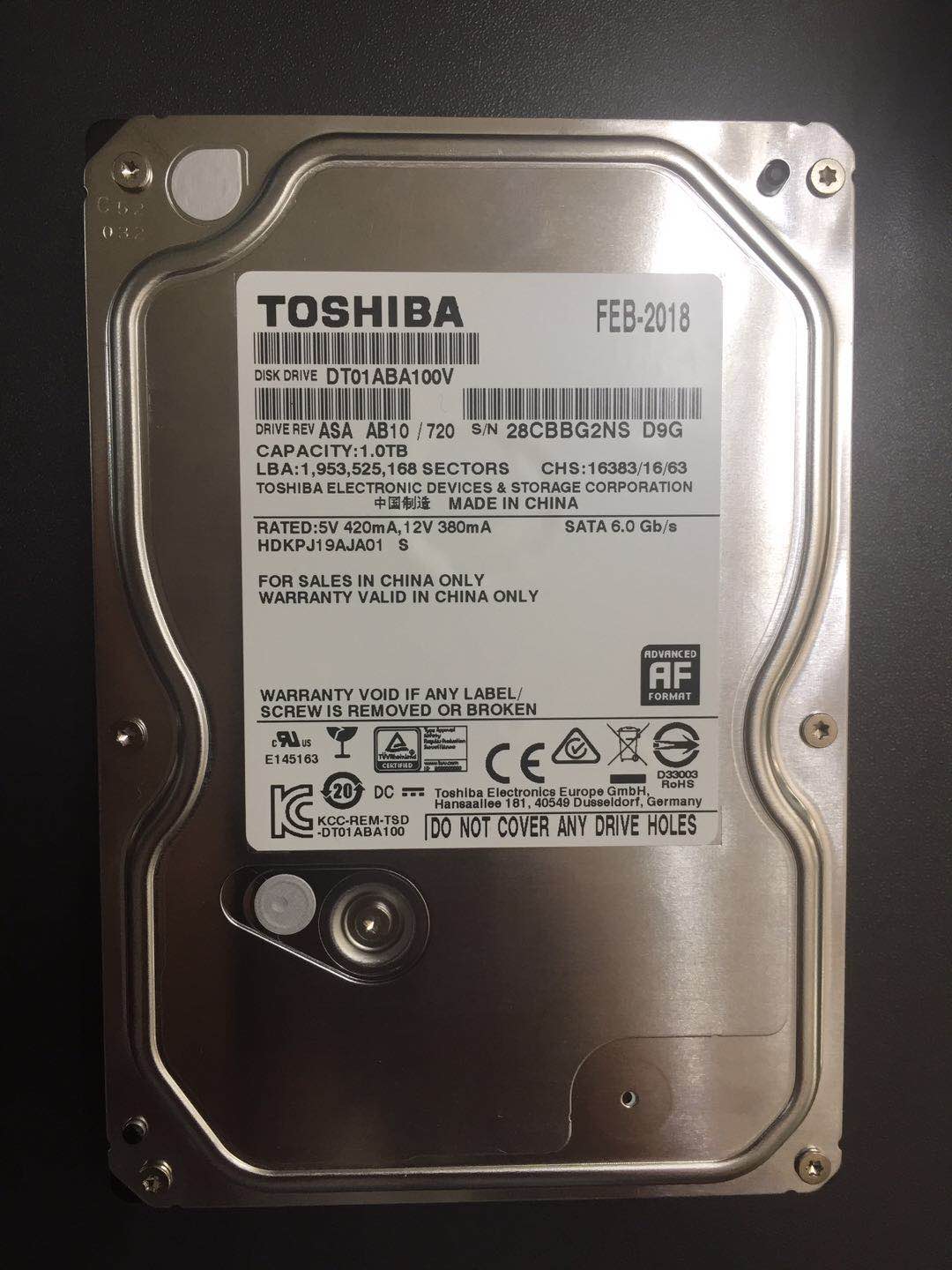

5700RPM 1TB Hard Drive Internal 3.5" Low Power Consumption With Wide Temperature Range

Brand Name : Brand

Model Number : DT01ABAxxxV

Place of Origin : CN

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : Negotiable

Delivery Time : 5-8 working day

Packaging Details : Industrial packing

HDD : HDD 3.5" 1TB/2TB/3TB/500GB

HDD size : 3.5-inch, Low Profile Form Factor

HDD RPM : 5,700 rpm

Interface : SATA

Width : 101.6 mm

Length : 147 mm Max

Contact Now

3.5" 1TB HDD 5700RPM Internal Hard Drive Bare Drive Best Selling

KEY FEATURES


· 3.5-inch, Low Profile Form Factor
· 5,700 rpm
· SATA up to 6.0 Gbit/s
· Advanced Format (AF) 512e Sector Length
· Low Power Consumption Versus Higher rpm Models (DT01ACA series)
· 24 dB (Idle)


APPLICATIONS


· Video Editing Systems
· Set-Top-Box (STB)
· Digital Video Recorders (DVR)
· Network Video Recorders (NVR)



MAIN SPECIFICATIONS





Model Number



DT01ABA300V



DT01ABA200V



DT01ABA100V



DT01ABA050V
Interface Serial ATA 3.0 / ATA-8 (6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s)
Formatted Capacity 3 TB 2 TB 1 TB 500 GB




Performance

 Interface Speed 6.0 Gbit/s Max.
Rotation Speed 5,940 rpm 5,700 rpm
Average Latency Time 5.06 ms 5.27 ms
Buffer Size 32 MiB
Logical Data Block Length DT01ABAxxxV HOST: 512 B, DISK: 4,096 B
Supply Voltage Allowable Voltage

5 V ± 5%

12 V ±10 %
Power Consumption Read / Write 5.4 W Typ. 4.7 W Typ. 5.7 W Typ.
Low Power Idle 4.2 W Typ. 3.3 W Typ. 3.0 W Typ.
Acoustics (Sound Power) Idle 24 dB 22 dB 19 dB
Seek 25 dB 24 dB 22 dB





RELIABILITY





Model Number



DT01ABAxxxV
Non-recoverable Error Rate 1 error per 1014 bits read





MECHANICAL SPECIFICATIONS





Model Number



DT01ABA300V



DT01ABA200V



DT01ABA100V



DT01ABA050V
Height 26.1 mm Max..
Width 101.6 mm
Length 147 mm Max.
Weight 680 g Max. 450 g Max.





ENVIRONMENTAL LIMITS







Item





Specification



Temperature

 Operating 0 °C to 60 °C
Non-Operating - 40 °C to 70 °C



Humidity

 Operating 8 % to 90 % R.H. (No condensation)
Non-Operating 5 % to 95 % R.H. (No condensation)




Shock

 Operating 686 m/s2 {70 G} (2 ms half sine wave)


Non-Operating

2,940 m/s2 {300 G}

(2 ms half sine wave )

3,430 m/s2 { 350 G }

(2 ms half sine wave)



Vibration

 Operating 6.57 m/s2 { 0.67 G } ( 5 to 500 Hz )
Non-Operating 10.2 m/s2 { 1.04 G } ( 2 to 200 Hz )



Altitude

 Operating - 300 m to +3,048 m
Non-Operating - 300 m to +12,000 m




ENVIRONMENTAL FEATURE






Model Number



DT01ABAxxxV
RoHS Compatible



REMARK

Read and write speed may vary depending on the host device, read and write conditions, and file size."2.5-inch" and "3.5-inch" mean the form factor of HDDs or SSDs. They do not indicate drive's physical size.
